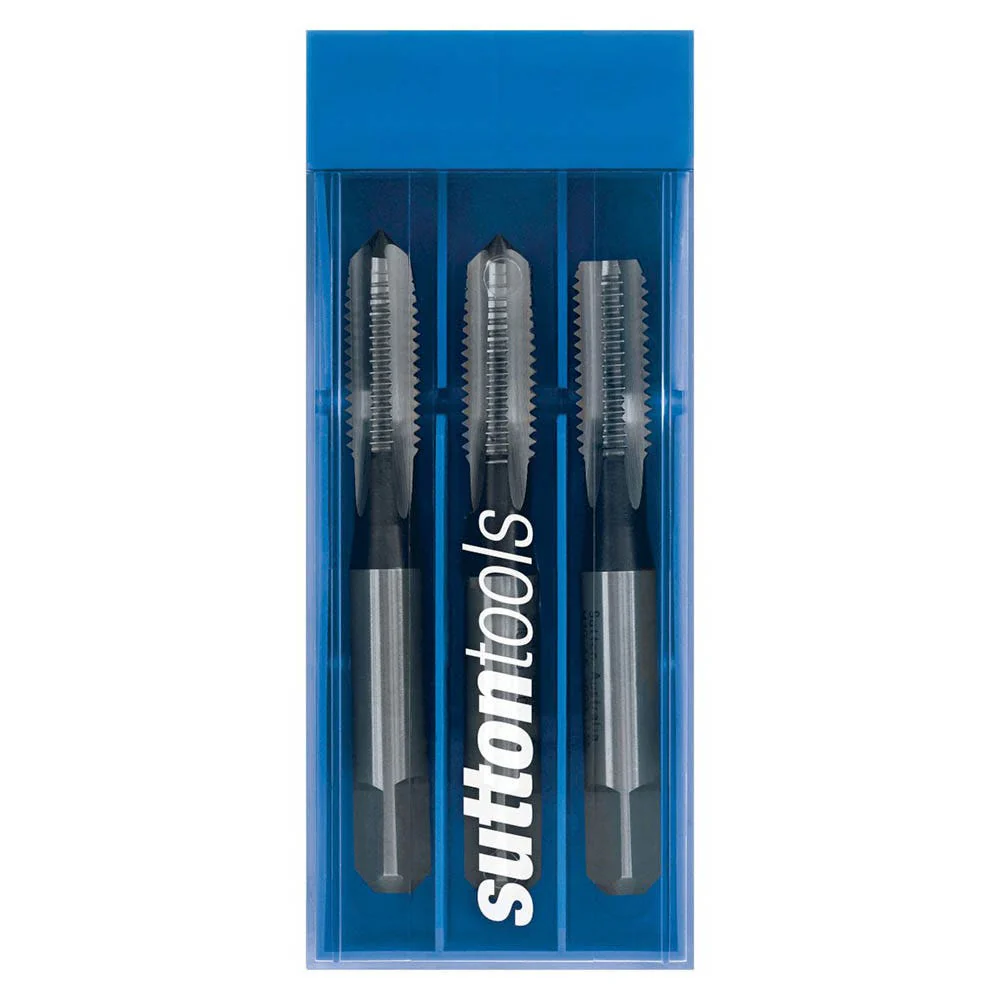

SUTTON 1/2" X 16 BSF HSS HAND TAP SET - 3 PIECE T9061270
General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1
Specifications
Designation: N
Material: HSS
Finish: Brt
Max Cut Depth: 1xD
Shank Form: A
Standard: ISO529
Thread Form: BSF
Nut Tolerance: Z3 Medium
Lead: Set
TPI: 16
Limit: Z3
Length l1 (mm): 89
Length l2 (mm): 29
Diameter d2 (mm): 9
sq: 7.1
Length l4 (mm): 10
z: 4
