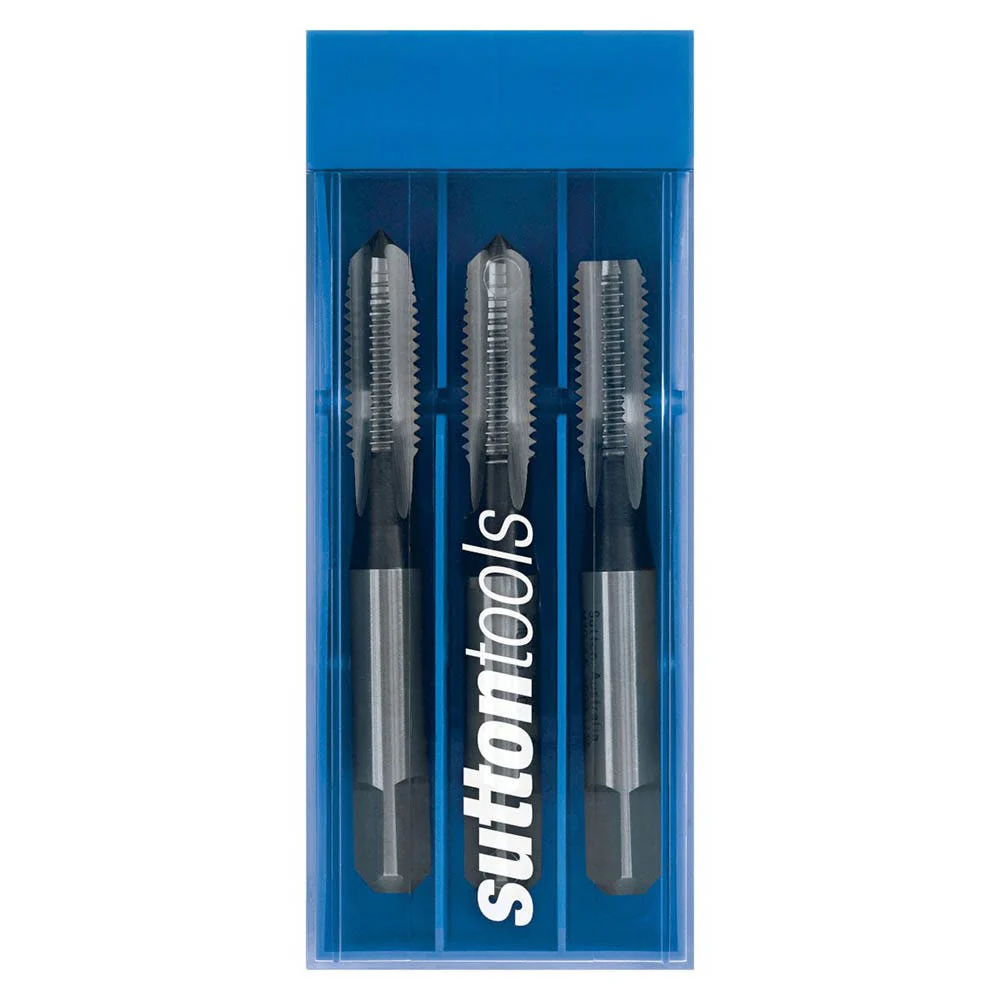

SUTTON 3/4" X 10 BSW HSS HAND TAP SET - 3 PIECE T9051905
General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1
Specifications
Designation: N
Material: HSS
Finish: Brt
Max Cut Depth: 1xD
Shank Form: A
Standard: ISO529
Thread Form: BSW
Nut Tolerance: Z3 Medium
Lead: Set
TPI: 10
Limit: Z3
Length l1 (mm): 112
Length l2 (mm): 37
Diameter d2 (mm): 14
sq: 11.2
Length l4 (mm): 14
z: 3
Original: $165.95
-65%$165.95
$58.08Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1
Specifications
Designation: N
Material: HSS
Finish: Brt
Max Cut Depth: 1xD
Shank Form: A
Standard: ISO529
Thread Form: BSW
Nut Tolerance: Z3 Medium
Lead: Set
TPI: 10
Limit: Z3
Length l1 (mm): 112
Length l2 (mm): 37
Diameter d2 (mm): 14
sq: 11.2
Length l4 (mm): 14
z: 3
