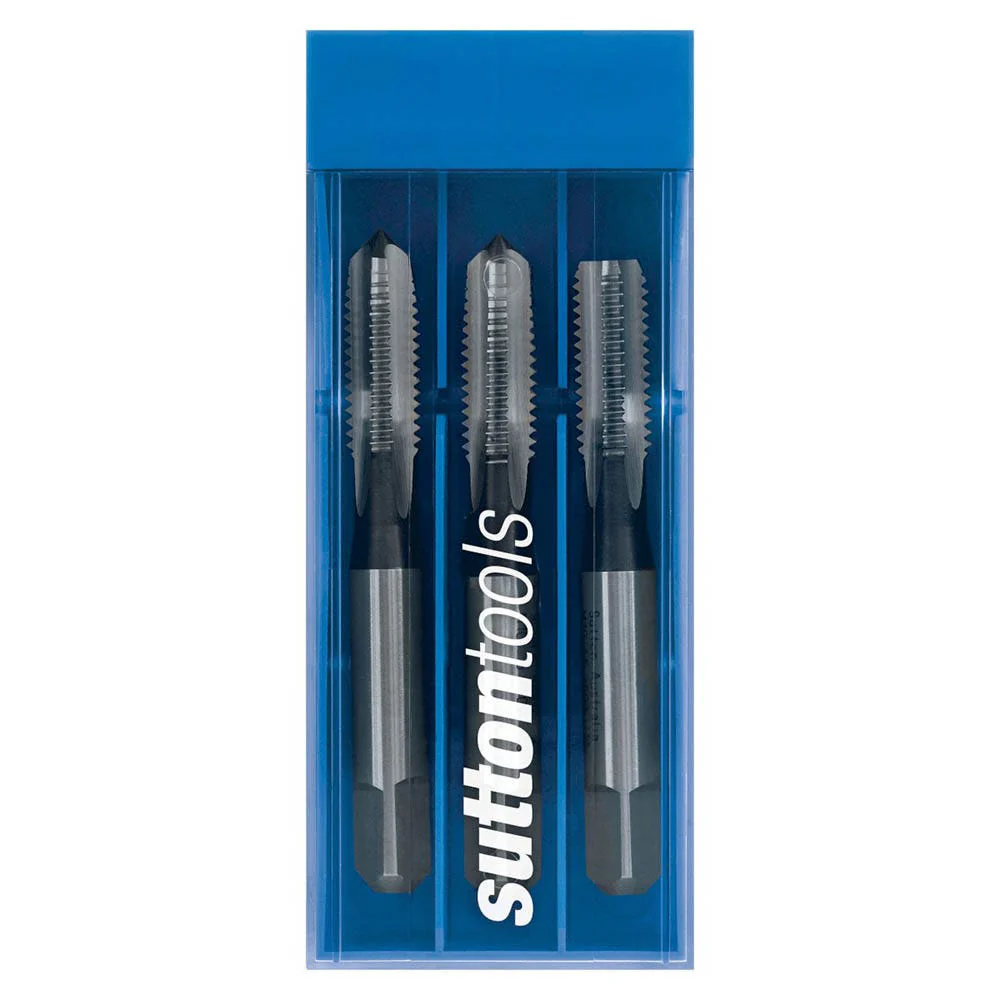

SUTTON 3/8" X 26 BSB HSS HAND TAP SET - 3 PIECE T9080953
General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1
Specifications
Designation: N
Material: HSS
Finish: Brt
Max Cut Depth: 1xD
Shank Form: A
Standard: ISO529
Thread Form: BSB
Nut Tolerance: Z4 Medium
Lead: Set
TPI: 26
Limit: Z4
Length l1 (mm): 80
Length l2 (mm): 24
Diameter d2 (mm): 10
sq: 8
Length l4 (mm): 11
z: 4
Original: $84.06
-65%$84.06
$29.42Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1
Specifications
Designation: N
Material: HSS
Finish: Brt
Max Cut Depth: 1xD
Shank Form: A
Standard: ISO529
Thread Form: BSB
Nut Tolerance: Z4 Medium
Lead: Set
TPI: 26
Limit: Z4
Length l1 (mm): 80
Length l2 (mm): 24
Diameter d2 (mm): 10
sq: 8
Length l4 (mm): 11
z: 4
