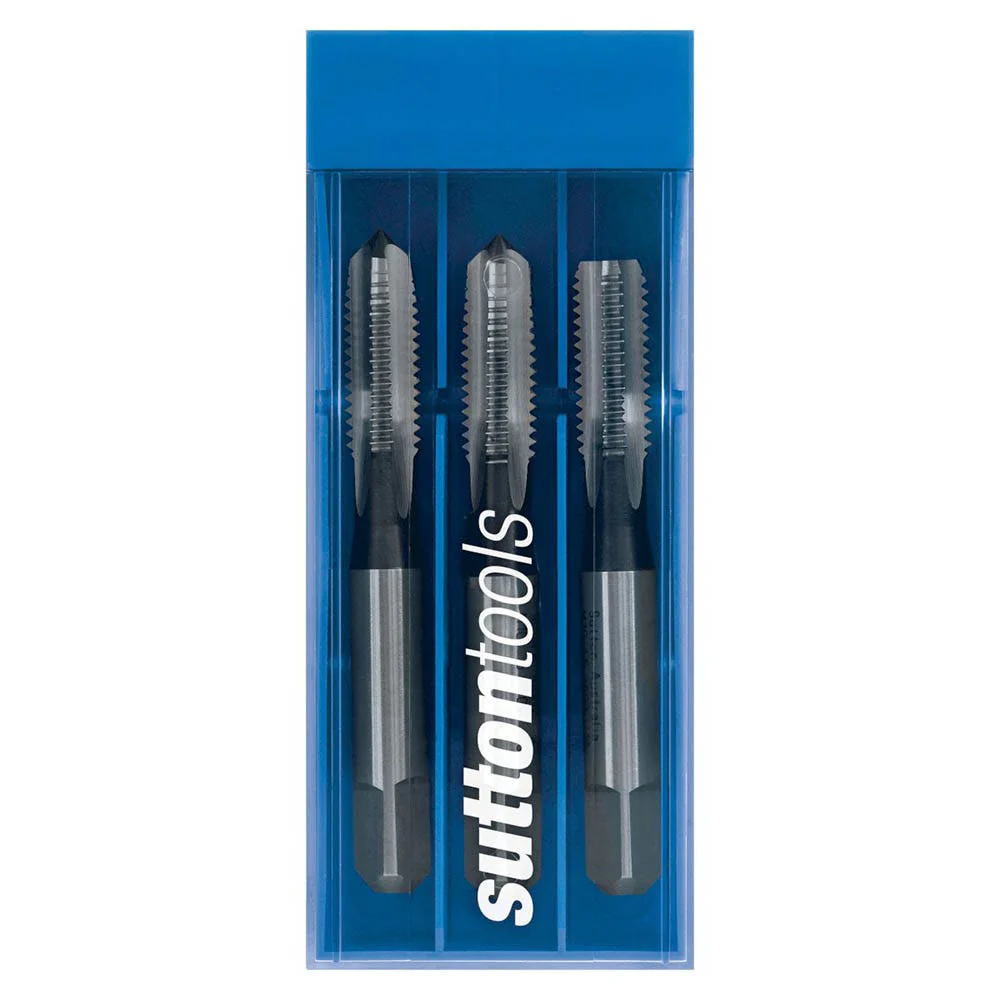

SUTTON M2 X 0.4 METRIC HSS HAND TAP SET - 3 PIECE T9010200

Product image 1

SUTTON M2 X 0.4 METRIC HSS HAND TAP SET - 3 PIECE T9010200

General purpose use
Suitable for materials up to 1000N/mm2
Suitable for both hand and machine operations
Depths up to approx. 1 x d1

Specifications

Designation: N
Material: HSS
Finish: Brt
Max Cut Depth: 1xD
Shank Form: A
Standard: ISO529
Thread Form: M
Nut Tolerance: ISO 2 / 6H
Lead: Set
Length l1 (mm): 41
Length l2 (mm): 8
Diameter d2 (mm): 2.5
sq: 2
Length l4 (mm): 4
z: 3
Pitch: 0.40

$22.83

Original: $65.22

-65%
SUTTON M2 X 0.4 METRIC HSS HAND TAP SET - 3 PIECE T9010200—

$65.22

$22.83

Product Information

Shipping & Returns

Description

General purpose use
Suitable for materials up to 1000N/mm2
Suitable for both hand and machine operations
Depths up to approx. 1 x d1

Specifications

Designation: N
Material: HSS
Finish: Brt
Max Cut Depth: 1xD
Shank Form: A
Standard: ISO529
Thread Form: M
Nut Tolerance: ISO 2 / 6H
Lead: Set
Length l1 (mm): 41
Length l2 (mm): 8
Diameter d2 (mm): 2.5
sq: 2
Length l4 (mm): 4
z: 3
Pitch: 0.40
