SUTTON MF22 X 1.5 METRIC HSS HAND TAP SET - 3 PIECE T9022207

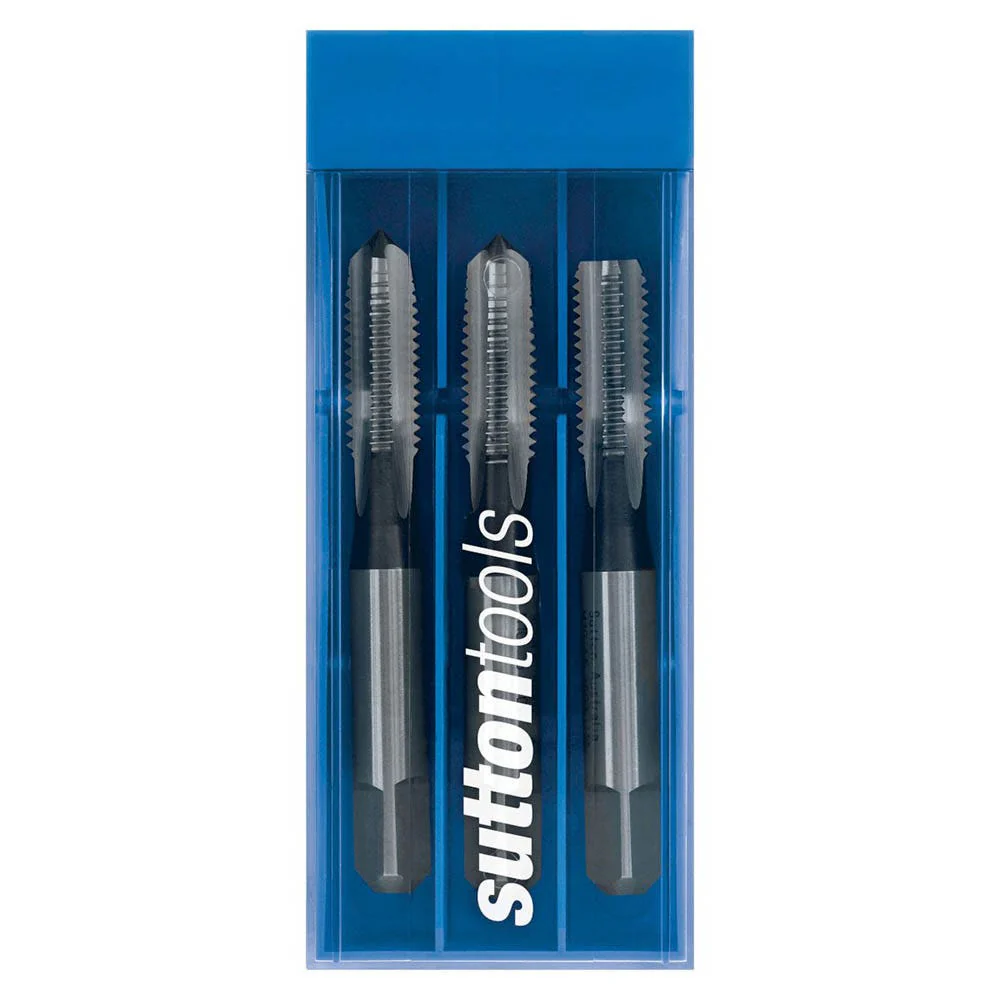

Product image 1

SUTTON MF22 X 1.5 METRIC HSS HAND TAP SET - 3 PIECE T9022207

General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1

Specifications

Designation: N
Material: HSS
Finish: Brt
Max Cut Depth: 1xD
Shank Form: A
Standard: ISO529
Thread Form: MF
Nut Tolerance: 2B
Lead: Set
Limit: 2B
Length l1 (mm): 118
Length l2 (mm): 38
Diameter d2 (mm): 16
sq: 12.5
Length l4 (mm): 16
Pitch: 1.5

$325.37
SUTTON MF22 X 1.5 METRIC HSS HAND TAP SET - 3 PIECE T9022207—
$325.37

Product Information

Shipping & Returns

Description

General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1

Specifications

Designation: N
Material: HSS
Finish: Brt
Max Cut Depth: 1xD
Shank Form: A
Standard: ISO529
Thread Form: MF
Nut Tolerance: 2B
Lead: Set
Limit: 2B
Length l1 (mm): 118
Length l2 (mm): 38
Diameter d2 (mm): 16
sq: 12.5
Length l4 (mm): 16
Pitch: 1.5
