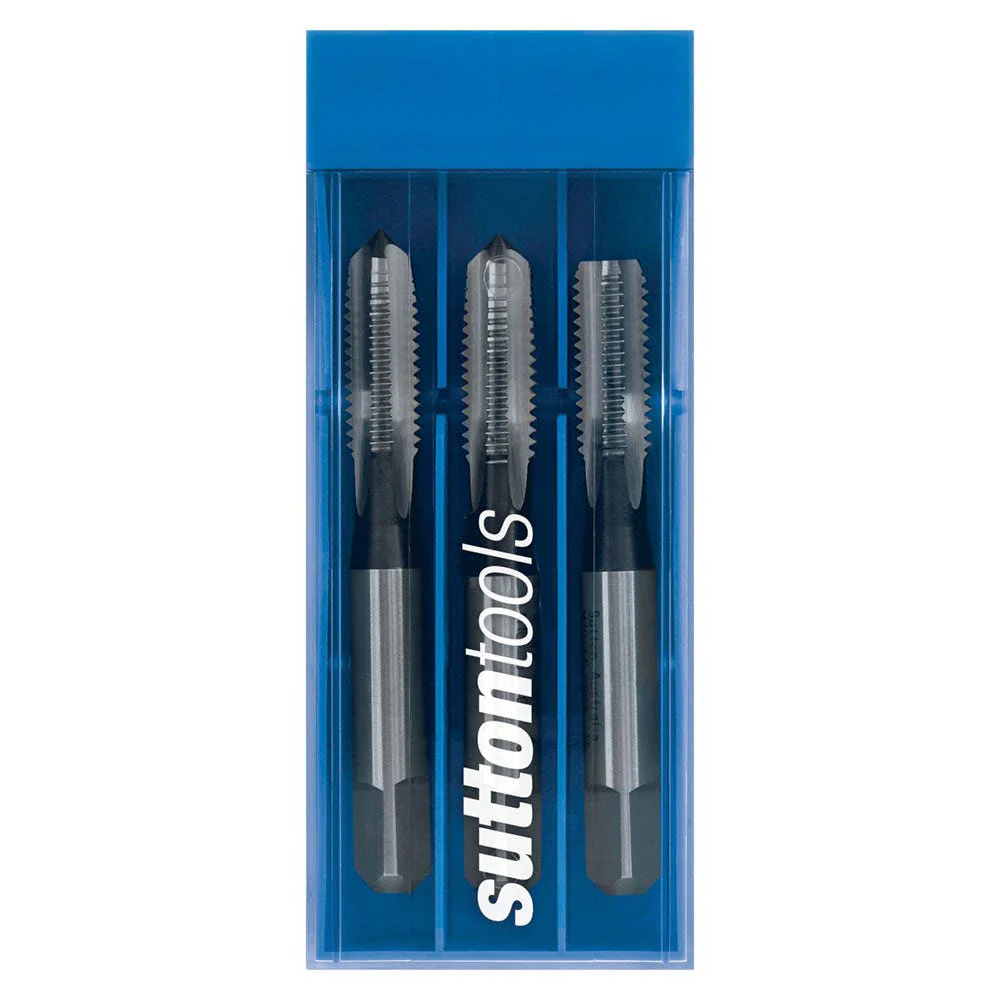

SUTTON MF24 X 2 METRIC HSS HAND TAP SET - 3 PIECE T9022408

Product image 1

SUTTON MF24 X 2 METRIC HSS HAND TAP SET - 3 PIECE T9022408

General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1

Specifications

Designation: N
Material: HSS
Finish: Brt
Max Cut Depth: 1xD
Shank Form: A
Standard: ISO529
Thread Form: MF
Nut Tolerance: 2B
Lead: Set
Limit: 2B
Length l1 (mm): 130
Length l2 (mm): 45
Diameter d2 (mm): 18
sq: 14
Length l4 (mm): 18
Pitch: 2.00

$146.60

Original: $418.85

-65%
SUTTON MF24 X 2 METRIC HSS HAND TAP SET - 3 PIECE T9022408—

$418.85

$146.60

Product Information

Shipping & Returns

Description

General purpose use
Suitable for materials up to 1000N/mm2
Through & blind holes
Suitable for both hand and machine operations
Depths up to approx. 1 x d1

Specifications

Designation: N
Material: HSS
Finish: Brt
Max Cut Depth: 1xD
Shank Form: A
Standard: ISO529
Thread Form: MF
Nut Tolerance: 2B
Lead: Set
Limit: 2B
Length l1 (mm): 130
Length l2 (mm): 45
Diameter d2 (mm): 18
sq: 14
Length l4 (mm): 18
Pitch: 2.00
